Cymbol

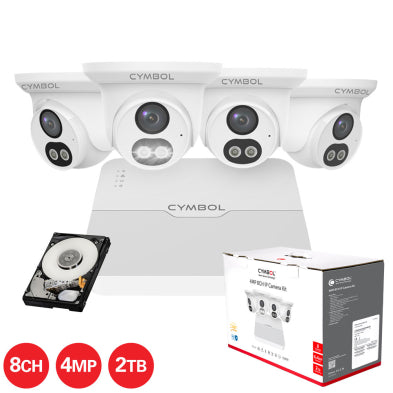

Cymbol 8CH IP Box Kit w/ 4 x 4MP White Dual Light Turret Cameras and 8CH 2TB 4K NVR

Cymbol 8CH IP Box Kit w/ 4 x 4MP White Dual Light Turret Cameras and 8CH 2TB 4K NVR

SKU_1750260161061_312

$799.99 CAD
$799.99 CAD
Sale Sold out

Features

  • 8CH NVR
    • 4K resolution recording
    • HDMI & VGA Output Simultaneously (HDMI up to 4K)
    • Supports cloud upgrades
  • 4 x 4MP (2K) Dual Light IP PoE Cameras - Fixed 2.8mm Wide Lens
    • Built-in Microphone
    • Smart IR up to 30m (98ft)
    • IP67 Weather Resistant up to -30oC
  • 2TB HDD Installed

Analytics

  • Motion Detection
  • Tampering Alarm
  • Audio Detection

Mobile App

  • User-friendly
  • Remote viewing from anywhere
  • 24/7 Playback
  • Easy to download
Specifications for: CY-IBK844MPL-WH: Cymbol 8CH IP Box Kit w/ 4 x 4MP White Dual Light Turret Cameras and 8CH 2TB 4K NVR
Network Video Recorder (NVR)
1x (CY-NVR4K-8P-2TB-WH)
IP Video Input 8-ch
Bandwidth 64Mbps (Incoming)
48Mbps (Outgoing)
HDMI/VGA Output HDMI:
4K(3840x2160)/30Hz,
1920x1080/60Hz,
1920x1080/50Hz,
1600x1200/60Hz,
1280x1024/60Hz,
1280x720/60Hz,
1024x768/60Hz
VGA:
1920x1080/60Hz,
1920x1080/50Hz,
1600x1200/60Hz,
1280x1024/60Hz,
1280x720/60Hz,
1024x768/60Hz
Recording Resolution 4K/5MP/4MP/3MP/ 1080p/960p/720p/D1/2CIF/CIF
Synchronous Playback 8-ch
Liveview display 1/4/6/8/9
Corridor Mode Screen 3/4/5/7/9
Decoding format Ultra 265/H.265/H.264
Liveview/ Playback 4K/5MP/4MP/3MP/ 1080p/960p/720p/ D1/2CIF/CIF
VCA Detection by Camera Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection
VCA Search Behavior Search
Smart Intrusion Prevention (SIP) by Camera 4-ch(supports channel 1-4; Alarm only, no image)
General Alarm Motion, Tampering, Human Body Detection, Video Loss, Alarm Input
Alert Alarm IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel: 2 x USB2.0
Interface 8 RJ45 10M/100M self-adaptive Ethernet Interface
Max Power Max 30W for single port
Max 75W in total
Power Supply 52V DC
Power Consumption: ≤9 W (without HDD)
Working Environment -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) 270mm × 205mm × 46mm (10.6"×8.1"×1.8")
Weight ≤0.8 kg (1.76 lb) (without HDD)
Cameras
4x (CY-TR4MP2-8DL)
Sensor 1/3”, 4.0 megapixel, CMOS
Minimum Illumination Colour: 0.0.01 lux ( F1.6, AGC ON)
0 lux with IR on
Adjustment angle Pan: 0° ~ 360°
Tilt: 0° ~ 80°
Rotate: 0° ~ 360°
Lens 2.8mm@F1.6
Iris Fixed
Field of View (H) 97.0°/ (V) 52.2° / (D) 107.5°
DORI Distance Detect 63m
Observe 25.2m
Recognize 12.6m
Identify 6.3m
IR Range Up to 30m (98 ft) IR range
Frame Rate Main Stream:

4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream:

D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
Flip Normal, Flip Vertical, Flip Horizontal, 180°, 90°Clockwise, 90°Anti-clockwise
Basic Analytics Motion detection,Tampering alarm, Audio detection
Other Functions Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP authentication
Built-in-mic Support
Edge Storage Micro SD, up to 128GB
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK
Client CymCamPro / Guard Station / Star4Live
Network 1 x RJ45 10M/100M Base-TX Ethernet
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 2.8W
Dimensions Ø126 x 93.6mm (Ø5.0” x 3.7”)
Weight 0.29kg (0.64lb)
Material Camera: metal / Housing: metal / Ring: plastic
Working/Storage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Protection IP67
View full details
